Toggle whether to include or exclude nodes with no connected edges under the current filter and edge visibility settings.
Group nodes together based on the given attribute value. Edges wil also be bundled together to better differentiate connectivity between bundle groups.
For continuous values this will group into bands.

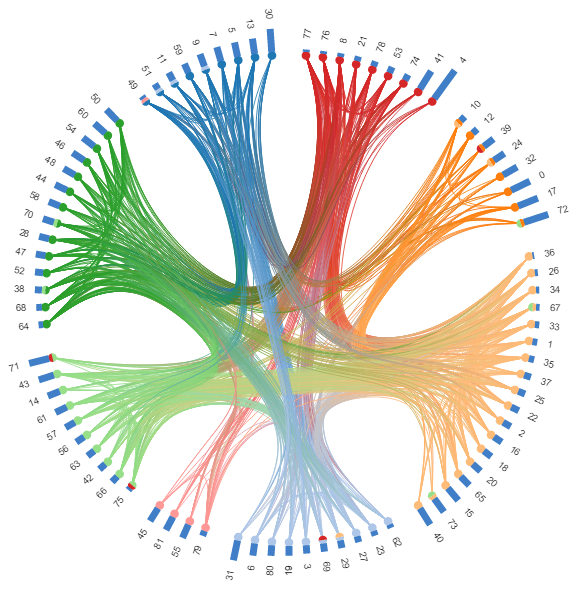

For attributes where a node can have multiple values (e.g., the assignment of a single node to multiple modules in an overlapping module decomposition), nodes will be grouped with other nodes that have exactly the same set of values. Nodes with more values (e.g., belong to more modules) will be placed in concentric circles closer to the centre.
Assign an attribute used to determine the order of nodes around the circle. If bundling is applied, this will affect the order within a bundle, but not the bundles themselves.
Set the node label to the label data, or alternatively the value of a given attribute.

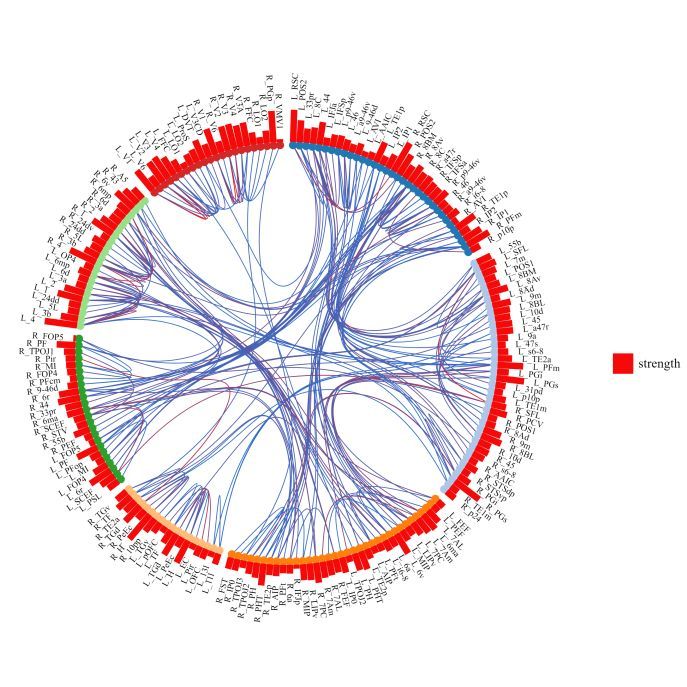

The histogram option allows for the addition of a bar graph representation of node attributes to be added on the circle's outer edge. Set the number and assignment of attributes, and use the color palette to set the respective colours.

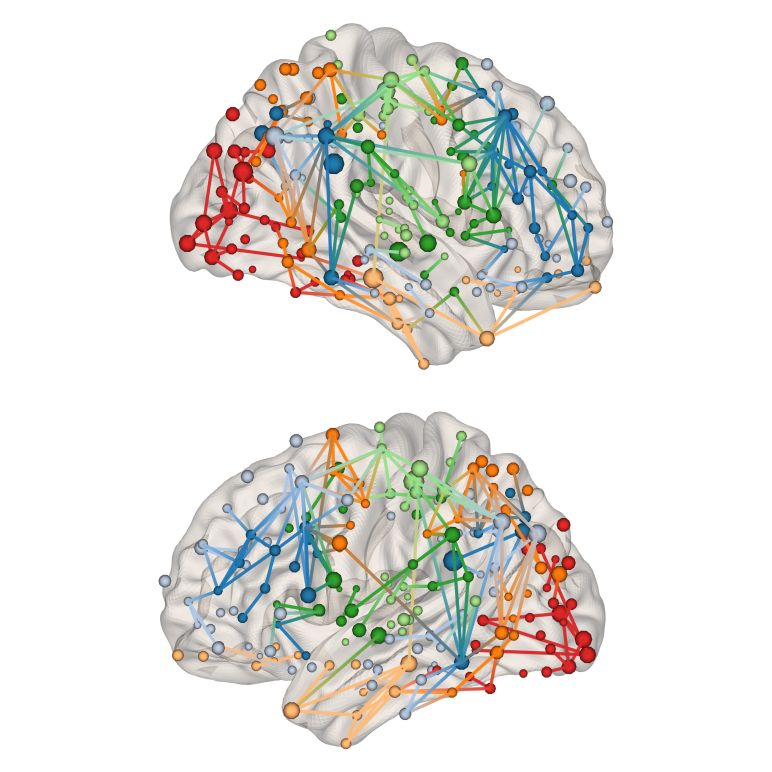

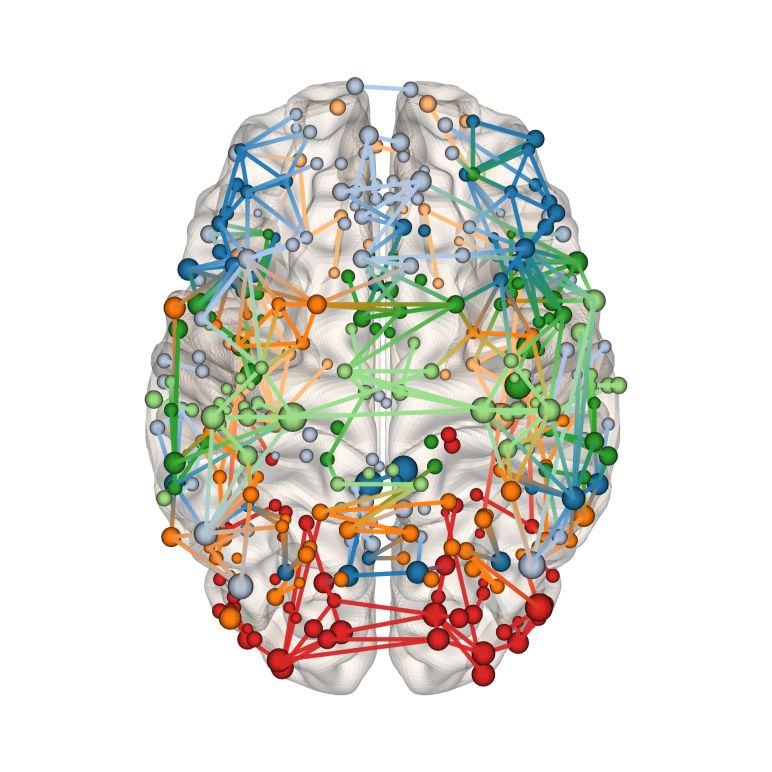

Brain surface model
The model used to represent the brain surface can changed to a preset model or from a custom model file uploaded by the user.
To use a custom model, select the "Upload" option, specify the file to use with the "Choose File" button, and finally press "Upload" to transfer and apply the new model.
The model must be in Wavefront OBJ (.obj) format. Some 3D modelling software such as 3ds Max can import and export to this format.
